Processor

32 bit ARM® Cortex™-M4F 64MHz SOC

RAM

64kB (SOC integrated RAM)

ROM

512kB (SOC integrated ROM)

WIFI

No support

BT

Support BT4.0/BLE (SOC integrated BT)

IMU

Support three-axis Gyro + three-axis ACCL sensor

Motor

Support X-axis linear motor

Indicator light

Support 1 white LED indication

Button

Left controller: X, Y, home, trigger, side button, joystick,Menu Button (Screenshot Button);
Right controller:A, B, home, trigger, side button, joystick,Menu Button (Screenshot Button);

Touch sensitive

A、B、X、Y、Trigger,Joystick support touch sensing

Continuous working time

> 25 hours

Powered by

Single AA dry battery

Anti-lost lanyard

Support

Transfer Protocol

Private agreement

Pairing method

Bluetooth connection pairing

Switch machine

After the Controller is powered on, if there is no pairing or if there is no button operation in the pairing state,
it will automatically shut down after about 2 minutes.
After automatic shutdown, long press the home button to turn it on.

Power display

Support displaying the power of the controller on the VR host side

Operating temperature

-10℃~+35℃

Storage temperature

-20℃~+60℃

Certification

SRRC(For China)

Processor

32 bit ARM® Cortex™-M4F 64MHz nRF52832

RAM

64kB (nRF52832 integratedRAM)

ROM

512kB (nRF52832 integratedROM)

WIFI

No support

BT

Support BT4.0/BLE (nRF52832 integrated BT)

IMU

Support three-axis Gyro + three-axis ACCL sensor

Motor

Support X-axis linear motor

Indicator light

Support 1 white LED indication

Button

Left controller: X, Y, home, trigger, side button, joystick,Menu Button (Screenshot Button);
Right controller:A, B, home, trigger, side button, joystick,Menu Button (Screenshot Button);

Touch sensitive

A、B、X、Y、Trigger,Joystick support touch sensing

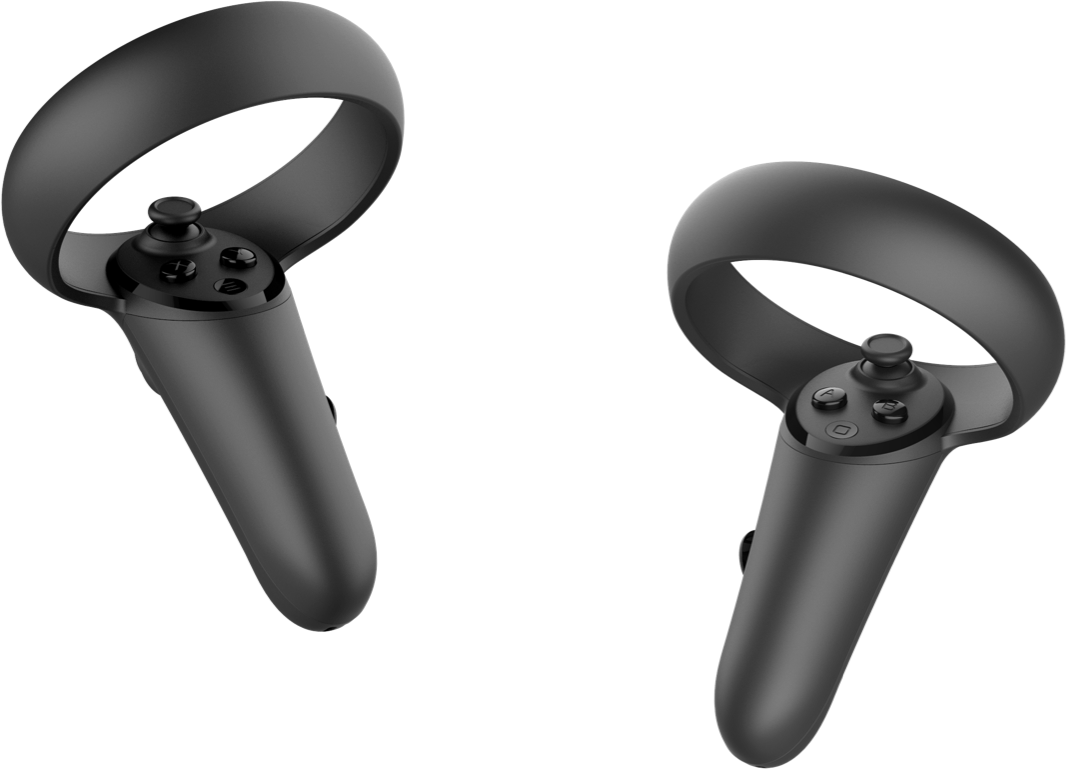

Infrared light ring

Fourteen Infrared LED Lights

Shutdown Curren

< 200uA

Standby Current

< 1mA

Average Operating Current

< 100mA

Powered by

Single AA Dry Cell

Anti-lost lanyard

Support

Transfer Protocol

Private agreement

Pairing method

Bluetooth connection pairing

Power On and Off

After the Controller is powered on, if there is no pairing or if there is no button operation in the pairing state
it will automatically shut down after about 2 minutes.
After automatic shutdown, long press the home button to turn it on

Power display

Support displaying the power of the controller on the VR host side

Operating temperature

-10℃~+35℃

Storage temperature

-20℃~+60℃

Certification

SRRC(For China)
